Bảng thông số kỹ thuật ( tham khảo)
Engine
|
||
Make
|
Caterpillar
|
|
Model
|
C15 ATAAC
|
|
Gross Power
|
581 hp
|
433.3 kw
|
Power Measured @
|
2100 rpm
|
|
Displacement
|
928.2 cu in
|
15.2 L
|
Number of Cylinders
|
6
|
|
Operational
|
||
Operating Weight - Full Load
|
70988.8 lb
|
32200 kg
|
Shipping Weight - Empty
|
61068 lb
|
27700 kg
|
Fuel Capacity
|
346.1 gal
|
1310 L
|
Hydraulic System Fluid Capacity
|
79.3 gal
|
300 L
|
Water Spray System Fluid Capacity
|
906.1 gal
|
3430 L
|
Operational Voltage
|
24 V
|
|
Travel Speed
|
3.1 mph
|
5 km/h
|
Rotary Cutter
|
||
Cutting Width
|
6.6 ft in
|
2000 mm
|
Cutting Depth
|
12.6 in
|
320 mm
|
Cutter Diameter
|
38.6 in
|
980 mm
|
Number of Tools
|
162
|
|
Tool Spacing
|
0.59 in
|
15 mm
|
Conveyor System
|
||
Collecting Conveyor Width
|
31.5 in
|
800 mm
|
Discharge Conveyor Width
|
31.5 in
|
800 mm
|
Discharge Conveyor Swing (R/L)
|
45 degrees
|
|

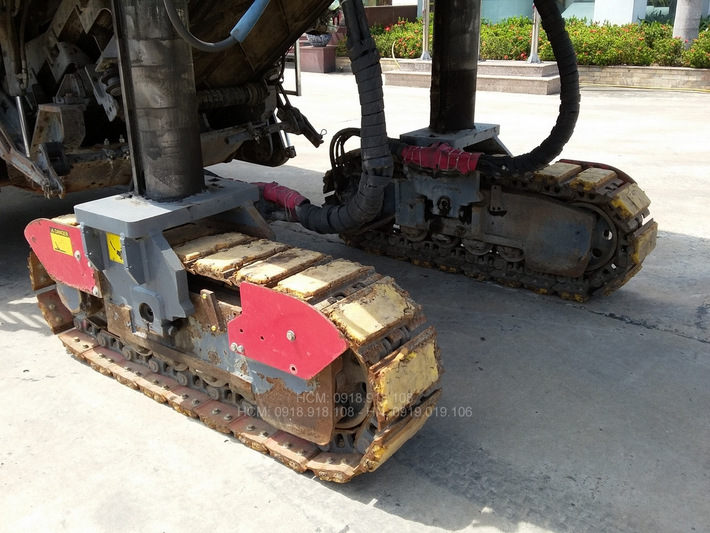

Tracks
|
||
Number of Track Units
|
4
|
|
Front Track Length
|
5.6 ft in
|
1720 mm
|
Front Track Width
|
11.8 in
|
300 mm
|
Rear Track Length
|
5.6 ft in
|
1720 mm
|
Rear Track Width
|
11.8 in
|
300 mm
|
Dimensions
|
||
Operating Length
|
46.1 ft in
|
14050 mm
|
Shipping Length
|
23.6 ft in
|
7200 mm
|
Shipping Width
|
8.4 ft in
|
2550 mm
|
Shipping Height
|
9.8 ft in
|
3000 mm
|
Max Operating Height
|
15.5 ft in
|
4725 mm
|
